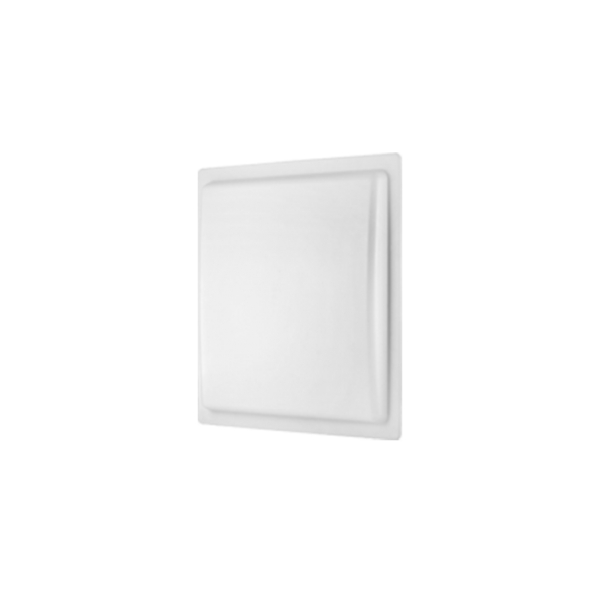

UHF2-10E

single-product

UHF2-10E

Read range up to 12 meters (adjustable)
Read Sensitivity: Line polarization read mode
Wiegand 26-Bit (Can change to 34-Bit via software)
Two working mode: Trigger read & Always read(Default)

Catégorie : Accessoires

Disponibilité : En Stock

Fabricant : ZkTeco

Model UHF1-5E,UHF1-5F UHF1-10E,UHF1-10F
Dimension 260*260*65(mm) 445*445*70(mm)
Reading distance Up to 6 meters (adjustable) Up to 12 meters (adjustable)
communication interface Wiegand 26(Default) /Wiegand 34, USB
Frequency 902Mhz – 926Mhz, 865MHz – 868MHz
Shell Material Antenna Panel:ABS Engineering Plastics; Back Cover:Aluminum Shell
Working Voltage 9~12V DC
Working Current 150mA(Always Read)
Working Temperature -20 °C – 60 °C
Interface Protocol EPC global UHF Class 1Gen 2/ISO 18000-6c
Multiple tags identification <100
Working mode Always read(Default) /Trigger read
I/O Interface Supports external trigger
Maximum power consumption <3W (RF output 26dBm,multiple tags), <2W (RF output 26dBm,Sigle tags)
