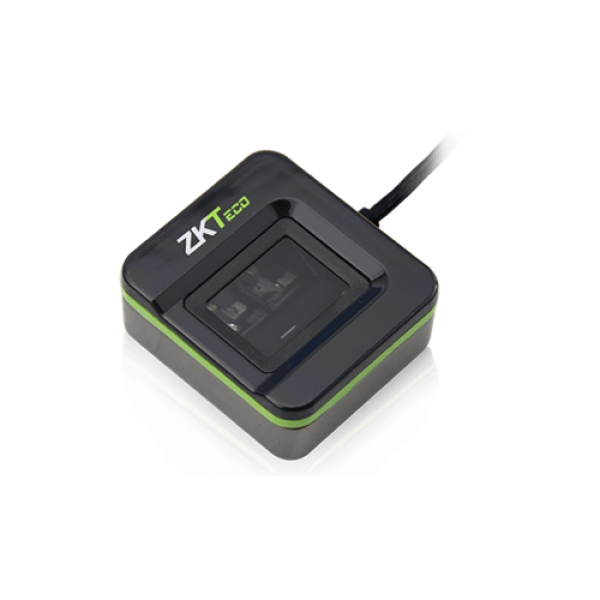

SLK20R

single-product

SLK20R

Stable operation under strong light
Support live fingerprinter detection function
Large fingerprint capture area and high image performance
Quick recognition of dry, wet and rough fingers
High Speed USB 2.0
Low Power Idle Mode
Available SDK for development

Catégorie : Accessoires

Disponibilité : En Stock

Fabricant : ZkTeco

Material Optical
CPU 280MHz DSP
Flash 32 MB
SoC RTOS
Image Quality 2 Million pixels CMOS
Encrypted Fingerprint Data YES
Sunlight Operation Yes, Dark Field and Automatic Gain / Exposure
Water Splash YES
Dry, Wet, or Rough Fingerprints Work well
Power Consumption 5V:200mA Scanning;5V:60mA idle (waiting for finger)
Live Fingerprint Detection YES
LED White
Product Certifications FCC, CE, RoHS, PIV
Power Voltage 5V (USB) / 3.3V(TTL-RS232)
Power Current 200mA
Communication UART (115200bps / TTL3.3V) / USB 2.0
Interface Socket Molex 51021- 0700 ( 7 pin; 1.25 mm)
Image Resolution 500~1000 dpi
Effective Collecting Area 15.24 * 20.32 mm (FAP20)
Collecting Area 16.5 * 23 mm
Image Size 300 * 400 pixel (FAP20 )
Module Size 36.2 * 44.2 * 15.85mm (L*W*H)
Image Format RAW, BMP, JPG
Template ZKFinger V10.0 ; ISO19794-2 ; ANSI-378
Template Size 1- 4KB (ZKFinger V10.0);1568 B (ISO 19794-2)
Gray Level 256
Weight 0.032kg
Operating Environment -20 °C ~ +50 °C; 90% r.h.
ISO/ANSI Support ISO-19794-2/4 ANSI-378
