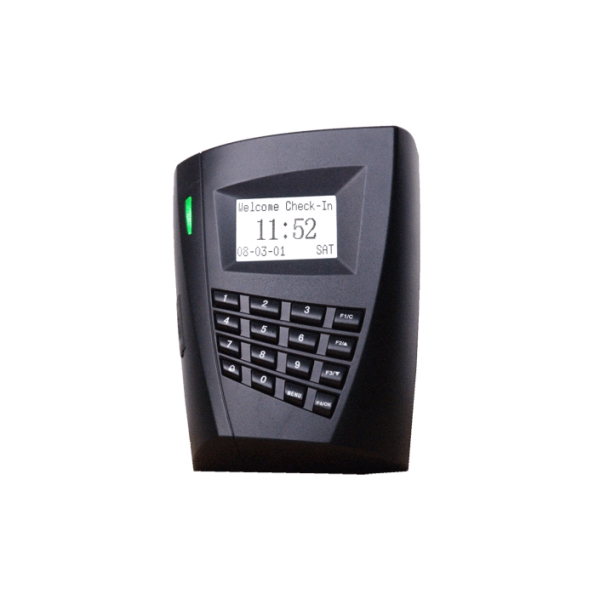

SC503
SC503
Easy installation, safe and reliable
Simple and convenient operation method
ID card standard, Mifare card optional
Full door lock control system
Wiegand out to connect with control panel
Wiegand in to construct master and slave system
Audio Prompt audio and LED feedback to guide the user to operate
Catégorie : Terminaux de contrôle d'accès
Disponibilité : En Stock
Fabricant : ZkTeco
| Model | SC503 |
| ID card Capacity | 30000 |
| Transaction Capacity | 50000 |
| Communication | TCP/IP, RS232/485, USB-Host |
| Access Control Interface for | 3rd party electric lock, door sensor, exit button, alarm, DoorBell |
| Wiegand Signal | Output & Input |
| Standard Functions | Anti-passback, SMS |
| Optional Functions | Mifare, HID, Workcode, Webserver |
| Display | LCD |
| Power Supply | 12V DC |
| Operating Temperature | 0°C – 45°C |
| Operating Humidity | 20%-80% |
| Dimension(L×W×H)mm | 149×110×42 |
| Gross Weight | 0.8KG |
